A.3 Bring arbitrary animation in SMPL format

In this tutorial, we are going to show how to bring animation of SMPL format into Omniverse.

For more information about SMPL, see

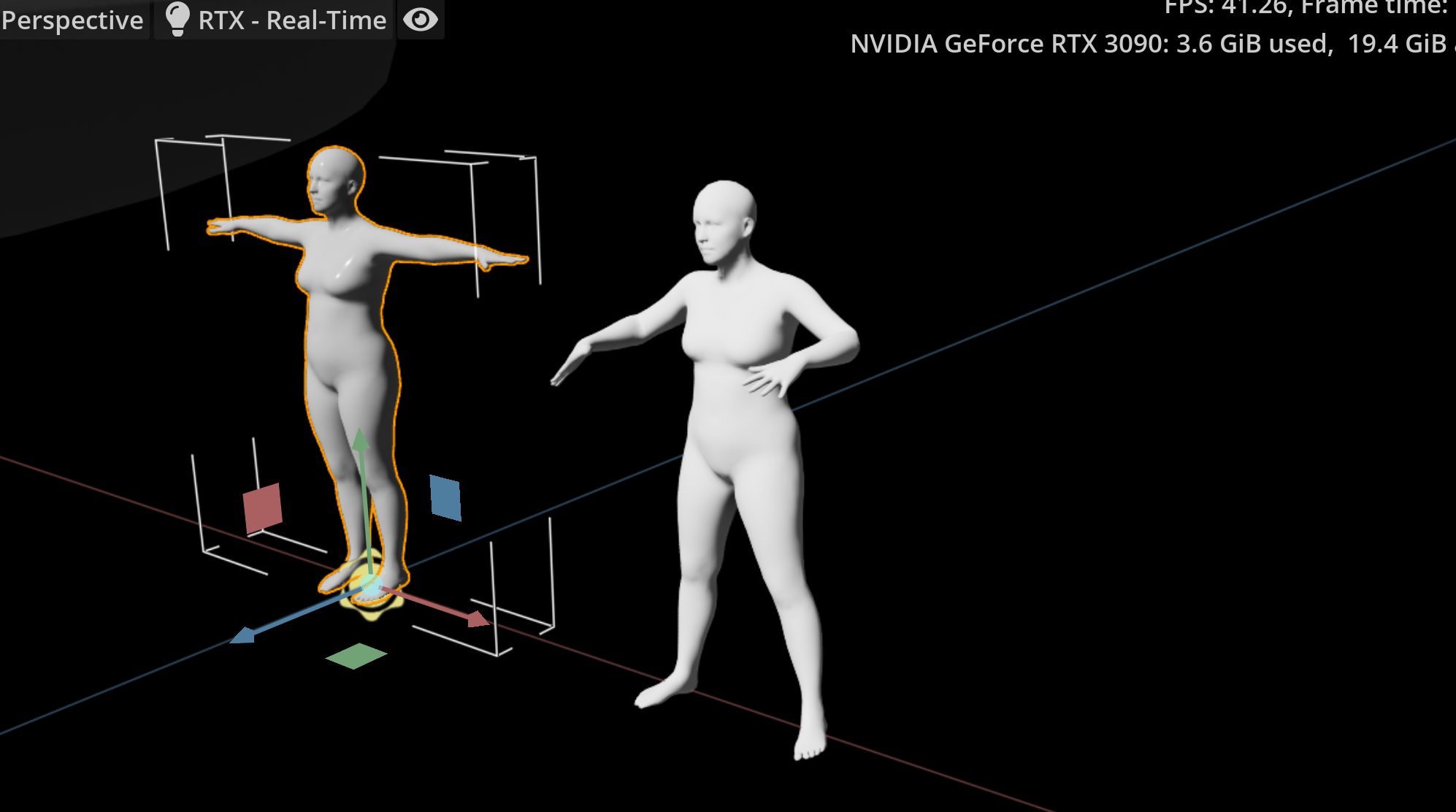

Bring animation into the stage:

anim_pose_provider_smpl_model

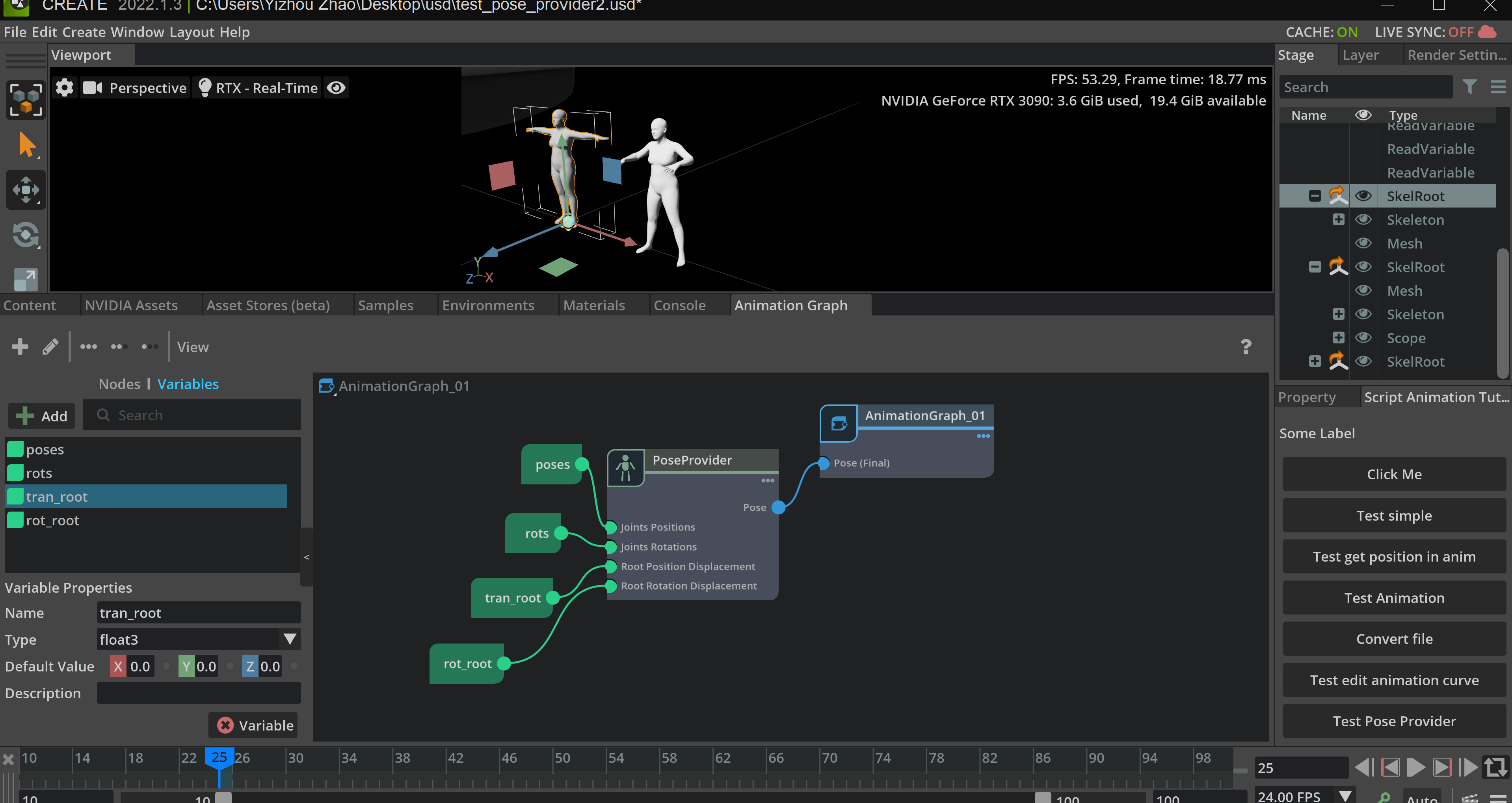

Set up an animation graph like this:

anim_pose_provider_smpl_graph

Get animation information from script:

animprim = stage.GetPrimAtPath("/World/chicken2/f_avg_root/Animation")

anim = UsdSkel.Animation(animprim) # from pxr import UsdSkel
trans = anim.GetTranslationsAttr().Get(current_frame_code) # e.g. current_frame_code = 0
quats = anim.GetRotationsAttr().Get(current_frame_code)

Set animation information from script:

trans = [carb.Float3(e[0],e[1],e[2]) for e in trans]
quats =  [carb.Float4(e.imaginary[0], e.imaginary[1], e.imaginary[2], e.real) for e in quats ]

character.set_variable("poses", trans)
character.set_variable("rots", quats)
